4x DAB/DAB+ or FM In to IP or Analogue Out Receiver
14MM-4DAB-FM
Headend Equipment
Matchmaster has a full range of Headend equipment from entry level to complex systems, including engineering support and system designs. Matchmaster can offer simple Channel Filters with AGC through to complex DVB modules for any type of broadcast including Encoders, Modulators & Transmodulators for DVB-T, DVB-C, DVB-S/S2, IP, ASI, SDI, FM and many more.
View More Headend Equipment
Features and Benefits
- 4x DAB/DAB+ or FM inputs to IP or analogue outputs
- For operation in SMATV and cable TV networks
- IP SPTS output in UDP/RTP
- Web browser user interface with built in IP switch
- Line and headphone compatible audio monitor output
- Can be used with Chameleon or Tangram to create DVBT output for radio insertion to TV systems
Pack Quantity
Inner: 1 box of 1 piece
Helpful Tip: Bulk cartons prevent potential transit damage.
Specifications
| Input | ||
|---|---|---|
| 4 separate 75 Ω F-connectors | ||
| FM | Frequency | 76-108 MHz |
| Signal level | See figure 1 | |
| Sensitivity | See figure 1 | |
| THD+N | See figure 1 | |
| Selectivity, adjacent channel | typical 50 dB | |
| Supported de-emphasis | 50 µs | |
| RDS support on request | ||
| DAB/DAB+ | Frequency | 168-240 MHz |
| Signal level | See figure 1 | |
| Sensitivity | See figure 1 | |
| Selectivity, adjacent channel | typical 46 dB | |
| Output | ||
| IP | 10/100/1000 Mbit RJ45 connector | |
| UDP and RTP | ||
| Analog | 3.5 mm phono jack (TRRS connector with left channel on tip, right channel on ring 1. Ring 2 and sleeve connected to ground). | |
| Accepted loads: 16 Ω-10 k Ω | ||
| Voltage: Adjustable, nominal 0.95 VP-P* | ||
| Miscellaneous | ||
| Mounting | 19" rack | |
| Mechanical dimensions | 483 x 44 x 166/184 mm ** | |
| Weight | 1,75 kg | |
| Operating temperature | 0-40 °C | |
| Operating humidity | <95%, non-condensing | |
| Packaged dimensions | 510 x 95 x 340 mm | |
| Packaged weight | 2,25 kg | |
| Encoding | ||
| Audio coder | MPEG-1, layer II stereo at 192 kbit/s | |
| Audio sample rates | 48 kHz | |
| Packaged into an MPEG transport stream | ||
| Management | ||
| Web UI via the 10/100/1000 Mbit RJ45 connector | ||
| Software upgradeable via the web UI | ||
| Power Supply | ||
| Connector | IEC-60320 C14 | |
| Voltage | 85-264 VAC 50/60 Hz | |
| Consumption | < 9 W | |

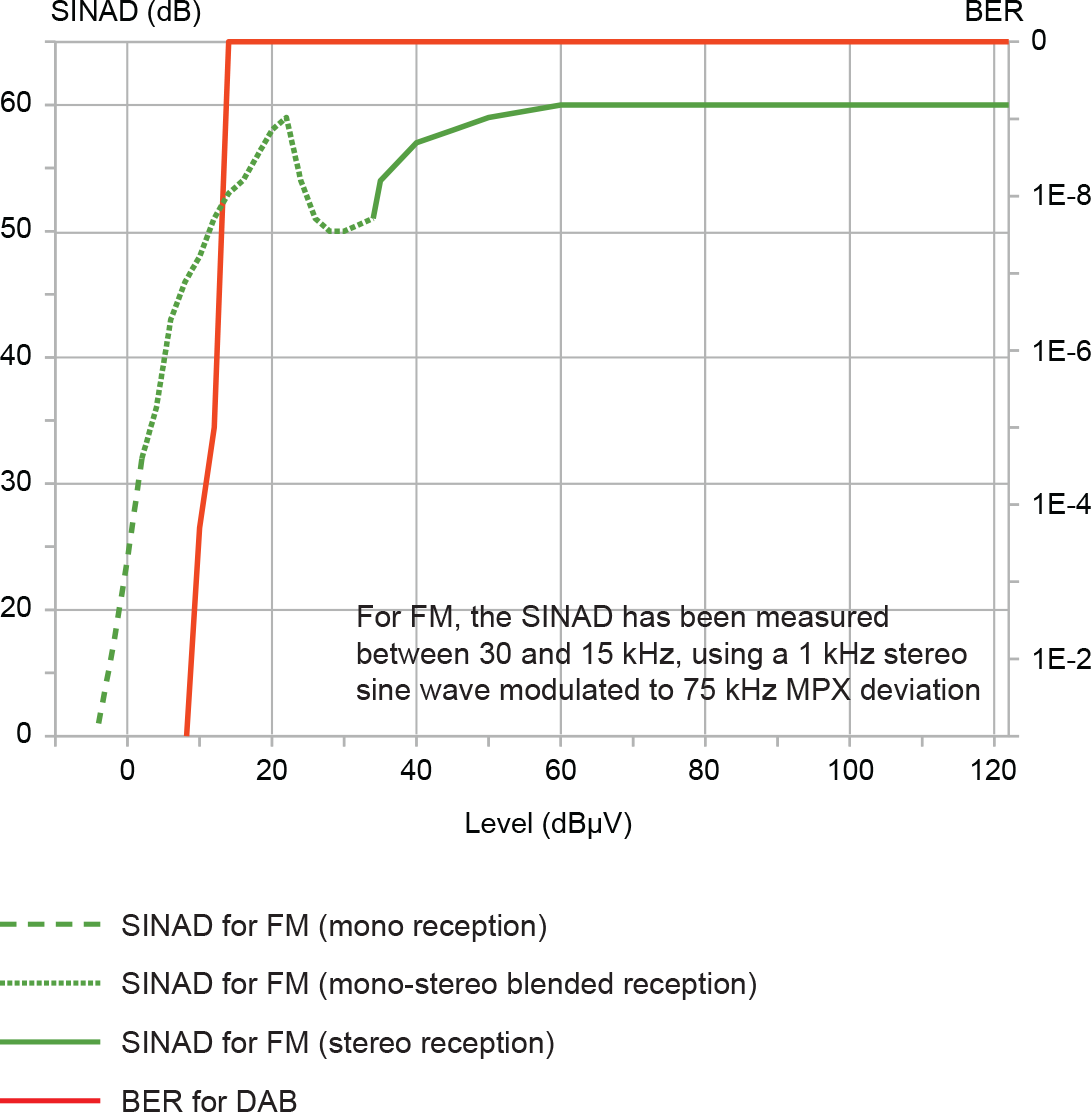

| Typical SINAD and BER vs Level (Figure 1) | ||
 |
||
** Excluding/including connectors
